Mixed-signal ASIC design is the discipline of combining analogue and digital circuits on a single custom integrated circuit, enabling a device to sense real-world physical signals, process them, and produce a calibrated output, all within one piece of silicon. It is the technology behind tyre pressure monitoring systems, factory automation encoders, machine vision sensors, automotive touch interfaces, and aerospace navigation ICs, and it sits at the core of what makes modern sensor-rich products possible.
If you are evaluating whether a custom mixed-signal IC is the right solution for your product, this guide covers the ground you need. It explains the three distinct categories of mixed-signal ASIC design, walks through the most significant engineering challenges, provides real-world application examples across the automotive, industrial, and aerospace sectors, and sets out the best practices that separate successful programmes from costly re-spins. There is also a commercial section and FAQ covering the questions that engineering managers and buying organisations most commonly ask before committing to a programme.
What Is a Mixed-Signal ASIC?
A mixed-signal ASIC is a custom-designed integrated circuit that combines analogue and digital circuits on the same piece of silicon. The analogue sections interface with physical signals such as pressure, temperature or position. The digital sections process, encode, and communicate the resulting data. The two domains must coexist on a single substrate without high-speed digital switching degrading the performance of the sensitive analogue circuitry, which is what makes mixed-signal design genuinely different from either discipline in isolation.
The defining building blocks often an analogue to digital converter (ADC), which translates a continuously varying physical signal into binary data, and a digital to analogue converter (DAC), which converts digital data back into an analogue output to drive actuators or other physical outputs. The accuracy, speed, and noise performance of these conversion blocks determine the quality of the entire system.
When a mixed-signal IC is designed specifically for one application rather than sold as a general-purpose component, it becomes an ASIC. A mixed-signal ASIC is optimised for your exact electrical requirements, operating environment, and performance targets in a way that no standard part can match.
The Three Categories of Mixed-Signal ASIC Design
Mixed-signal ASIC design is not a single discipline. It spans three distinct categories, each with different design priorities, tooling requirements, and engineering challenges. Step 1 in scoping any custom IC programme is identifying which category your application falls into. This determines the expertise and design approach you need from your ASIC partner.
1. Sensor Interface and Signal Conditioning
Sensor interface and signal conditioning is one of the most widely served categories in automotive and industrial mixed-signal design. The ASIC takes a raw physical measurement from a sensor, conditions the signal through amplification, filtering, and offset correction, then converts it to a calibrated digital output via an Analogue-to-Digital Converter (ADC). The core challenge is preserving signal integrity through the conditioning chain while rejecting electrical noise from the surrounding environment, particularly in applications where the sensor operates in a harsh or electromagnetically noisy setting.
Sensor interface ASICs are designed around the physical properties of the sensing element. The main interface types are:
- Resistive: Using Wheatstone Bridge structures formed as MEMS devices for efficient integration in a System in Package (SiP) configuration. Tyre pressure monitoring (TPMS) is a widely deployed application.
- Inductive: Effective in dirty or no-contact environments where the sensing element must remain unaffected by contamination. Used in proximity detectors and automated industrial processes.
- Magnetic: Using Hall Effect and magneto-resistive techniques to measure field strength and derive location information. Widely used in encoder ASICs for factory automation and robotics.
- Capacitive: Detecting changes in capacitance for position and proximity measurement without relying on conductance. Used in touch screen ICs and non-metallic proximity detection.
- Haptic: Generating controlled tactile feedback in touch interfaces. Increasingly adopted in automotive infotainment systems and industrial control panels.
- Acoustic: Measuring wave characteristics, including amplitude, phase, and spectrum, for applications such as noise cancellation and sound analysis.
2. Power Management and Regulation
Power management ASICs control power supplies, regulate voltages, manage battery charging and discharge, and protect downstream circuitry. In mixed-signal systems, power management is not just about efficiency. Noise on supply rails couples directly into analogue circuits, degrading ADC and DAC performance. A well-designed power management ASIC is therefore as important to system accuracy as the signal chain itself.
For engineering teams, the critical requirement is that power management blocks are co-designed with the signal-conditioning circuitry to maintain the noise floor at acceptable levels across the operating range. For buying organisations, integrating power management into the ASIC eliminates discrete regulators and protection components, reducing BOM cost and printed circuit board (PCB) area simultaneously.
The shift to electric vehicles has made this one of the fastest-growing areas in automotive mixed-signal ASIC design. Battery monitoring, cell balancing, and motor drive control all depend on mixed-signal ICs that combine high-voltage analogue circuits with digital control logic to manage power efficiently and safely throughout the vehicle’s full lifetime.
3. Data Conversion and High-Speed Signal Processing
The third category focuses on high-performance ADC and DAC design for applications where fast, accurate signal conversion is the primary requirement rather than physical sensing. Machine vision is the clearest example in industrial and automotive markets, high-speed, high-resolution ADCs digitise optical signals quickly enough to support real-time inspection and process control on production lines operating at volume.
In aerospace and defence, data conversion ASICs for navigation and ranging require exceptional linearity and dynamic range. Any nonlinearity in the ADC introduces systematic errors that propagate through the downstream signal-processing chain, with direct consequences for system accuracy. These applications typically combine high-speed data conversion with substantial digital signal processing, making them among the most technically demanding mixed-signal programmes.
The same hardware characteristics that make data conversion ASICs effective in these applications, low power consumption, real-time processing within strict thermal constraints, and purpose-built signal chain optimisation, are increasingly relevant to edge AI deployments. Where general-purpose processors are often too power-hungry or physically large to meet the demands of edge devices, a mixed-signal ASIC can execute specific inference tasks efficiently within the device’s own constraints. As AI adoption accelerates in industrial and automotive applications, the data conversion and signal processing capabilities at the core of mixed-signal ASIC design are becoming a key enabler of effective edge intelligence.
Mixed-Signal ASIC Applications Across Industries
The following examples illustrate how mixed-signal ASICs are applied across our three core markets. In each case, the application demands a combination of expertise in sensing modalities and the ability to maintain signal integrity in a challenging operating environment.
Automotive: Tyre Pressure Monitoring Systems
TPMS ASICs are resistive sensor interface devices that use Wheatstone Bridge MEMS structures, integrated with a sensor interface ASIC die in a System-in-Package configuration. The ASIC must accurately measure pressure over a wide temperature range while operating on a small battery inside a rotating tyre, imposing tight constraints on power consumption and signal-conditioning performance.
Swindon Silicon has developed TPMS ASICs at scale for global automotive applications, contributing to the widespread adoption of this safety-critical technology.
Automotive: Touch Feedback and Haptic ICs
Haptic technology is being increasingly adopted in automotive infotainment and control systems to provide drivers with tactile confirmation without requiring visual attention.
Custom haptic ICs combine capacitive sensing to detect touch position with analogue drive circuits to generate precise, repeatable tactile responses, enabling the transition from mechanical controls to touch-based interfaces without loss of feedback.
Swindon Silicon has developed haptic ICs for automotive and industrial applications where consistency, responsiveness, and integration with the wider system are critical.

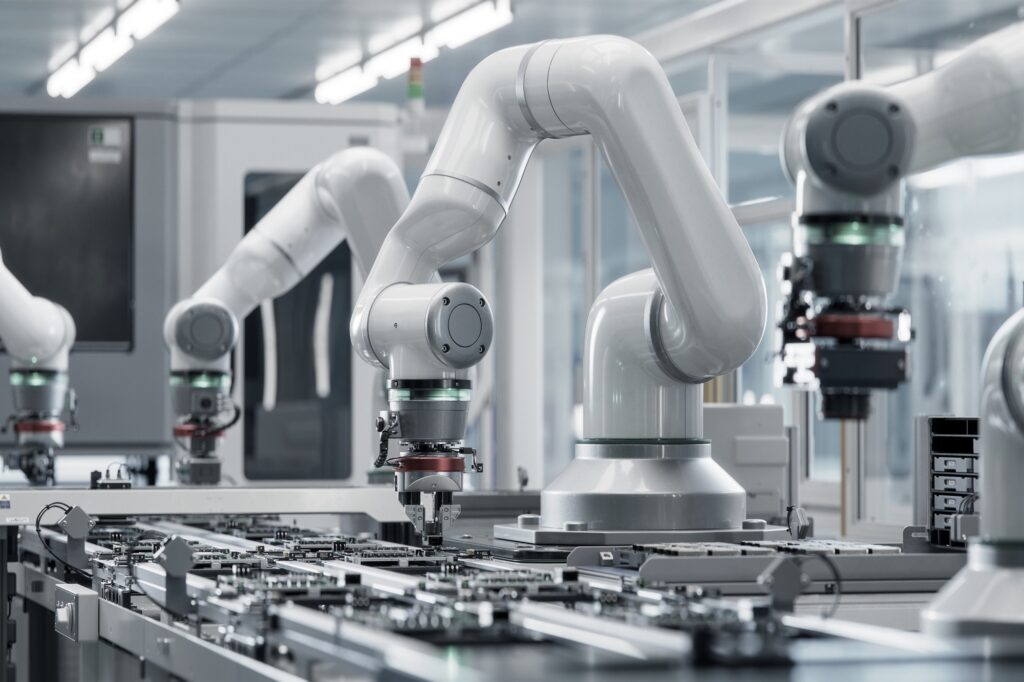

Industrial: Encoder ASICs for Factory Automation
Positional encoders for collaborative robots and industrial automation equipment use magnetic sensing ASICs to provide accurate location information using Hall Effect and magneto-resistive techniques.
Swindon is partnered with a global automation equipment manufacturer to supply encoder ASICs for positional encoders across factory automation applications, where measurement accuracy directly determines the repeatability and quality of automated processes.
Industrial: Machine Vision Sensor ICs
Optical image sensing for machine vision requires high-speed ADC performance to digitise visual information quickly enough to support real-time inspection and process control.
These systems must capture and process large volumes of data with low latency, often in high-speed production environments where accuracy and repeatability directly affect product quality. Integration of analogue front-end design with digital signal processing is critical to maintaining image fidelity while meeting throughput requirements.
Swindon Silicon has partnered with a precision imaging manufacturer to develop custom optical sensor ICs for machine vision applications, where performance, reliability, and system integration are key.
Industrial: Acoustic Sensor Interface for Hearing Protection
Acoustic sensor interface ASICs are used in hearing protection and noise-cancellation systems to measure sound wave characteristics in real time, including amplitude, phase, and frequency. These systems enable active noise control, where an opposing signal is generated to reduce unwanted sound through destructive interference.
In industrial environments, this allows hearing protection devices to go beyond passive attenuation by actively reducing continuous or low-frequency noise while preserving situational awareness. Microphones capture ambient sound, which is processed and inverted to generate an “anti-noise” signal that cancels the original waveform before it reaches the ear.
Swindon Silicon has developed noise-cancelling ASICs for industrial hearing protection applications, where real-time signal processing, low power consumption, and integration with compact form factors are critical to overall system performance.
For a broader view of how ASICs support power management and signal processing in similar applications, see our article on the role of ASICs in power management microsystems for hearing aids.
Key Challenges in Mixed-Signal ASIC Design
Understanding the principal challenges in mixed-signal design helps engineering managers assess technical risk and gives buying organisations a clearer picture of programme timescales and costs. The most significant challenges are:
Managing the Analogue-Digital Boundary
One of the design challenges in mixed signal work is noise coupling from digital switching circuits into sensitive analogue blocks.. High-speed digital logic generates sharp current transients that propagate through shared supply rails and substrate into ADC inputs and amplifier stages. Experienced mixed-signal designers manage this through physical partitioning of the two domains, separate supply routing, and careful layout of the analogue front-end relative to the digital core. This is as much a layout and floorplanning discipline as a circuit design one, and it is an area where depth of experience across many programmes makes a material difference to outcomes.
Process, Voltage, and Temperature Variation
Analogue circuits do not behave consistently across all manufacturing process corners or across the full operating temperature range. A sensor interface ASIC designed for an automotive application must maintain accuracy from minus 40 to plus 150 degrees Celsius, and must do so across the natural variation in transistor characteristics from one wafer to the next. Thorough simulation and verification across all process, voltage, and temperature corners is essential before tapeout, and designing in the right margin at the circuit level is a skill that comes from experience with real silicon, not simulation alone.
Calibration and Trim
Precision mixed-signal ASICs in sensing applications typically require individual calibration to meet their accuracy specifications. This is carried out during production test, where each device is measured, and trim values are programmed into non-volatile memory to correct for offset and gain errors. Designing an effective calibration architecture and implementing the production test process that applies it efficiently at volume is a significant part of any sensor interface ASIC programme. It is also an area where a partner with established production test infrastructure makes a material difference to yield and unit cost.
Long-Term Reliability and Qualification
Automotive and aerospace mixed-signal ASICs must pass stringent qualification testing to standards such as AEC-Q100 before entering production. This involves accelerated lifetime testing, temperature cycling, humidity stress, and electrostatic discharge testing to demonstrate reliable operation over the full expected service life. For safety-critical applications, functional safety standards such as ISO 26262 impose additional requirements on the design and verification process. Planning for qualification from the programme start, rather than treating it as a final step, avoids costly late-stage redesigns.
Best Practices in Mixed-Signal ASIC Design
The following best practices support the successful planning and delivery of mixed-signal ASIC programmes, from early specification through to production and long-term supply:
- Define the full operating envelope at the outset. Voltage range, temperature range, electromagnetic environment, and lifetime requirements should all be clearly established before circuit design begins. Changes at or after tapeout can be costly and difficult to implement.
- Co-design the power management and signal chain. Supply noise is a common cause of degraded ADC performance. Addressing power architecture alongside signal chain design helps avoid limitations later in the programme.
- Plan the calibration architecture early. For precision sensor interface ASICs, the trim and calibration approach directly affects die area, test time, and yield. It is most effective when designed in from the start.
- Use proven analogue IP where available. Reusing characterised, silicon-proven blocks can reduce design risk and support more predictable programme timelines.
- Involve test considerations from the specification. Testability, coverage, and cost per unit are shaped by decisions made early in the design process. Considering these factors upfront helps avoid inefficiencies during production.
- Align design decisions with production and supply. Packaging, test strategy, and long-term availability should be considered alongside circuit design to minimise downstream constraints and support continuity.
- Plan for qualification in parallel with design. Standards such as AEC-Q100 and ISO 26262 require time and coordination. Incorporating qualification activities from the outset supports a smoother path to compliance.
Taken together, these practices help reduce development risk, improve predictability, and support reliable, long-term performance in mixed-signal ASIC programmes.
For a step-by-step view of how these stages are structured in practice, see our ASIC design flow.
Does a Mixed-Signal ASIC Make Commercial Sense?
For engineering managers, feasibility centres on whether performance requirements can be met by a custom IC within acceptable cost and timescale constraints. For commercial and procurement stakeholders, the question is whether the long-term benefits justify the upfront development investment.
The case for an ASIC is typically strongest when one or more of the following apply:
- Annual volumes support the development investment. Higher volumes generally improve the commercial case, although this depends on application complexity and unit value.
- No standard component meets the required performance, size, or power constraints.
- Proprietary functionality needs to be protected. This may include sensing approaches, calibration methods, or system-level differentiation.
- Long-term supply continuity is critical. ASICs can provide stability where off-the-shelf components may be subject to change or obsolescence.
- Existing components are approaching end of life. Redesigning around a custom IC can reduce dependency on discontinued or constrained parts.
A structured feasibility assessment considers development cost, time to market, expected unit pricing at target volumes, and the broader commercial impact. This provides a clear basis for evaluating whether an ASIC approach is appropriate for the application.
Conclusion
Mixed-signal ASIC design sits at the intersection of analogue precision and digital control, enabling products that interact reliably with the real world in ways that standard components cannot. From sensor interfaces and power management to high-speed data conversion, the complexity of these systems demands a structured, disciplined approach across the entire programme lifecycle.
Success depends not only on circuit design, but on early specification, careful management of the analogue-digital boundary, and alignment between design, test, qualification, and production. When these elements are considered together, an ASIC can deliver measurable advantages in performance, integration, and long-term supply stability.
For organisations evaluating this route, the key is understanding both the technical requirements and the commercial trade-offs. With the right approach, mixed-signal ASICs provide a reliable foundation for high-performance, long-lifecycle products across automotive, industrial, and aerospace applications.
With over four decades of experience delivering mixed-signal ASICs into demanding automotive, industrial, and aerospace environments, Swindon Silicon supports programmes from early feasibility through to high-volume production, helping teams navigate both the technical and commercial considerations involved.
If you are assessing whether a mixed-signal ASIC is the right approach for your application, get in touch to discuss your requirements.
Key Terms Explained
- Signal Conditioning: The process of amplifying, filtering, and adjusting a raw sensor signal before conversion.
- PVT Variation (Process, Voltage, Temperature): Variations in circuit behaviour caused by manufacturing differences and operating conditions.
- Tapeout: The point at which a completed chip design is sent for fabrication.
- System in Package (SiP): A packaging approach that integrates multiple die or components into a single module.
Frequently Asked Questions
What is the difference between RF and mixed-signal design?
RF design focuses on circuits operating above approximately 100 MHz, covering transmitters, receivers, and antenna interfaces. mixed-signal design covers the full range of analogue-digital integration from low-frequency sensor circuits through to moderate-speed data interfaces. Some mixed-signal ASICs include RF blocks, such as the wireless transmitter in a TPMS IC, but RF is one component of the wider mixed-signal architecture rather than its defining discipline.
What is the difference between AMS and DMS design?
AMS (Analogue and Mixed Signal) design flows start from the analogue circuitry, with digital content added to support calibration, communication, and control. This is typical in sensor interface and power management ASICs where analogue performance is the primary requirement. DMS (Digital and Mixed Signal) flows start from a digital architecture and incorporate analogue blocks such as ADCs as supporting IP. For most sensing applications in automotive and industrial markets, an AMS approach is most appropriate.
What are the key levels of mixed-signal verification?
Mixed-signal verification typically proceeds through five levels: (1) schematic-level simulation of individual analogue blocks; (2) post-layout extraction and simulation to capture parasitic effects; (3) mixed-mode simulation of the full analogue and digital circuit together; (4) formal verification of the digital content; and (5) silicon correlation, where the first fabricated devices are characterised to confirm that simulation models accurately predicted real-world behaviour. Each level catches different classes of problem, skipping levels is one of the most common causes of expensive re-spins.
How does a System in Package differ from a standard ASIC?
A System in Package combines multiple die, and sometimes passive components or MEMS sensor elements, inside a single package. For sensing applications, a SiP integrates the sensor element and the mixed-signal ASIC die together, with calibration applied to the combined unit. This results in a fully characterised, ready-to-install module rather than components that must be individually sourced and calibrated on the customer’s assembly line. SiPs are common in TPMS and other precision sensor applications where the matched performance of sensor and ASIC is critical to end accuracy.
Can an ASIC replace a discontinued component?
Yes, and obsolescence recovery is one of the most commercially compelling use cases for a mixed-signal ASIC. The replacement device can be designed to be pin and functionally compatible with the original part, minimising the impact on your existing system design and production processes. A partner with a strong track record in the relevant sensing modality can typically deliver a replacement device faster than starting a new design from scratch.
